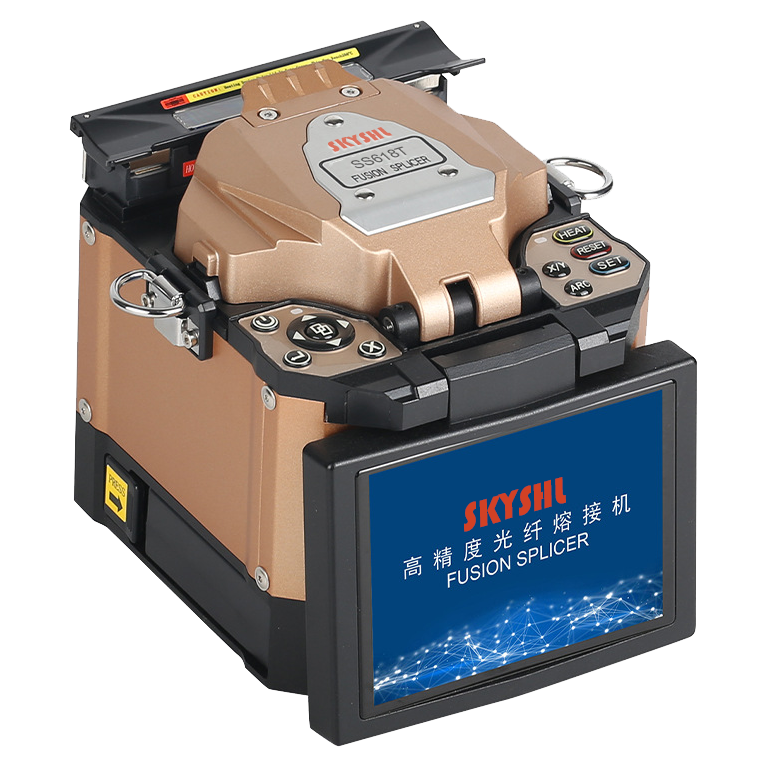

| Model | SS618F Fusion Splicer |
| Splicing Type | SM, MM, DS, NZDS |
| Splicing Loss | 0.02dB(SM),0.01dB(MM),0.04dB(DS),0.04dB(NZDS) |
| Return Loss | >60dB |
| Splicing Mode | Manual, Half Auto, Auto |
| Fiber Alignment | Core to Core Alignment by PAS technology |
| Applicable Fiber | Cable indoor and 0.25mm,0.9mm fiber, SC connector(option) |
| Splicing Time | ≤9s |
| Heat Time | ≤30s |
| Cleaved Length | 8~16mm |
| Fiber Image/ Magnification | 300/200 |
| View Display | 5 inch digital high-quality LCD screen |
| Tension Test | Standard 2N (option) |
| Heat Shrinkable Sleeve | 60mm, 40mm and serials heat Shrinkable Sleeve |
| Battery Capacity | 200 cycles splicing and heating, 3 hours charging time |
| Battery Life | Cycling charge 300-500 times, easy to replace battery |
| Electrodes Life | 3000, easy to replace electrodes |
| Power Source | ≤20W |
| Interface | USB Convenient data download and software update |
| Construction Lighting | Built in high brightness, wide range of lights, easy to operate at night |
| Power supply | Built in lithium battery 5200mAh 11.1V; external adapter, input: AC100-240V, output: DC13.5V/4.5A |
| Operating Condition | 0-5000m above sea level, Temperature: -10-60℃ |
